Case Sealer JTA-05/JTB-05
The automatic sealing machine is a tape sealing carton sealing equipment, which is mainly used for carton sealing. It can complete the upper and lower sealing actions at one time. When in use, the specification of the carton can not change too frequently. It has obvious advantages when continuously sealing the carton with the same specification. Automatic sealing machine is suitable for sealing products of household appliances, textiles, food, general merchandise, medicine, beverage, tobacco, daily chemical, automobile, cable, electronics and other industries. The automatic sealing machine has the advantages of simple operation and low failure rate. It can be used for stand-alone operation or supporting work with assembly line.
Detailed
Features:
Semi Automatic Side Belts Driven Sealer
Compact and durable design, easy to operate.
Side belts driven suit for sealing narrow carton.

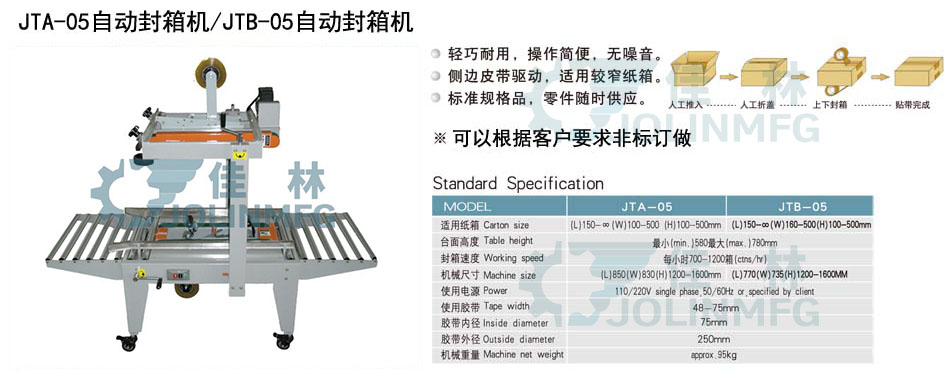

| STANDARD SPECIFICATION | |
| Model | JTA-05 |
| Carton size | (L)150~∞mm (W)100-500mm (H) 100-500mm |
| Table height | min. 580mm，max. 780mm |
| Working speed | 700-1200 (ctns/hr) |
| Machine size | (L)850mm (W)830mm (H)1200 - 1600mm |
| Power | 110/220V single phase, 50/60 Hz or, specified by client |
| Tape width | 48mm, 75mm alternative use |
| Machine net weight | approx. 95kgs |
